VN

0 product code

VN

VN is a lubrication component for supplying or distributing oil or grease. Select the configuration according to the lubrication system and operating conditions.

Detailed technical content

Not all single-line metering devices operate in the same way

SKF MonoFlex uses several operating principles, including initial lubrication, relubrication and dynamic delivery. These differences affect when a metering element receives and discharges lubricant during the main line’s pressure cycle.

Therefore, when replacing one product series with another, do not consider only the number of outlets or thread size. Match the system’s operating principle, activation/pressure-relief pressure and the delivered quantity at each point.

The delivered quantity must suit each lubrication point

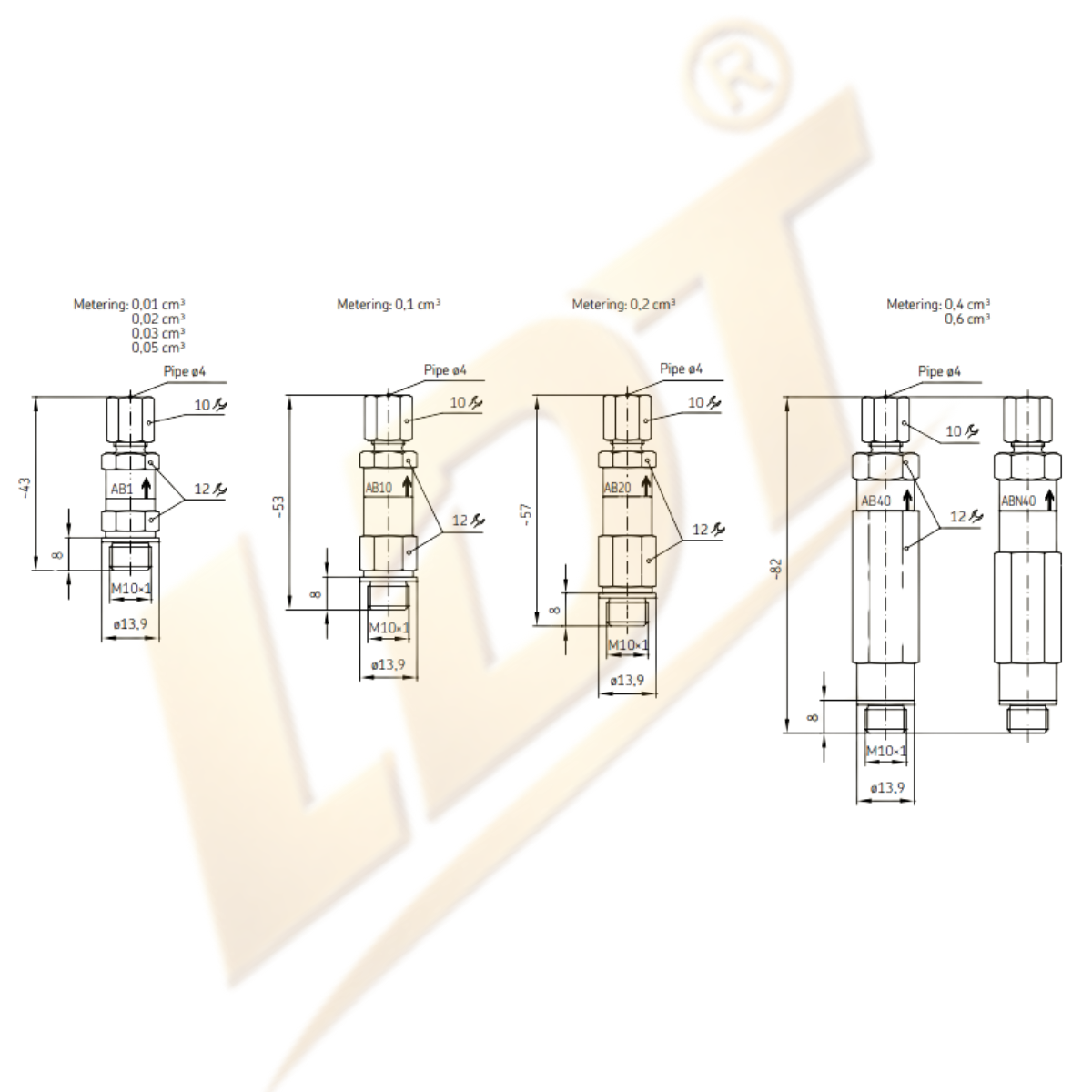

MonoFlex devices are available with various metered quantities. Too little delivery may not meet the lubrication requirement, while too much can cause excess grease, increased heat or lubricant waste.

When an assembly has multiple outlets, check the metered quantity of each outlet; do not assume that all outlets have the same flow merely because they are on the same block.

Oil, fluid grease and grease have their own limits

Depending on the product series, MonoFlex can work with oil, fluid grease or grease up to a specified NLGI grade. Lubricant viscosity and consistency directly affect the device’s filling, discharge and return. When changing the grease or oil type, recheck the limits of the exact product series instead of retaining the existing pump settings by default.

FAQ

Frequently asked questions

Can MonoFlex 340, 350, 370 or VN units be interchanged when they have the same number of outlets?

Not on outlet count alone. The series may differ in operating principle, metered volume, pressure range, connection type and permitted lubricant. Check the exact series, delivery per outlet and pressure requirements of the existing system.

Why does a single-line system normally require pressure relief after each cycle?

Many single-line metering devices require the main line to depressurize so that the piston or metering mechanism can reset for the next cycle. If pressure is not released sufficiently, the device may not recharge the required lubricant quantity. The required relief pressure depends on the exact series.

Can an oil system be converted to grease simply by changing the lubricant in the reservoir?

No. Each device has limits for oil viscosity or grease NLGI grade, and the pump and piping must also be suitable. Changing lubricant can alter pressure, reset behavior and actual delivery. Check both pump and metering-device specifications before conversion.

If one lubrication point requires more grease, must the entire metering assembly be replaced?

Not necessarily, but the configuration of the exact series must be checked. Some ranges offer several metered volumes or outlet arrangements. Select an element with the correct delivery for each point instead of extending pump operating time for the entire system and overfeeding other points.
