PSG

PSG is a lubrication component for supplying or distributing oil or grease. Select the configuration according to the lubrication system and operating conditions.

Detailed technical content

Progressive operation creates a continuous distribution sequence

In a progressive divider, the pistons operate in sequence. The movement of one piston enables the next piston to complete its stroke, so measured quantities of lubricant are distributed to each outlet in turn during a defined cycle.

This characteristic makes system monitoring easier: by correctly monitoring a piston or divider cycle, an interruption in distribution can be detected. However, the cycle signal is meaningful only when all piping and lubrication points are installed correctly and are not blocked.

Monoblock and segmented divider designs

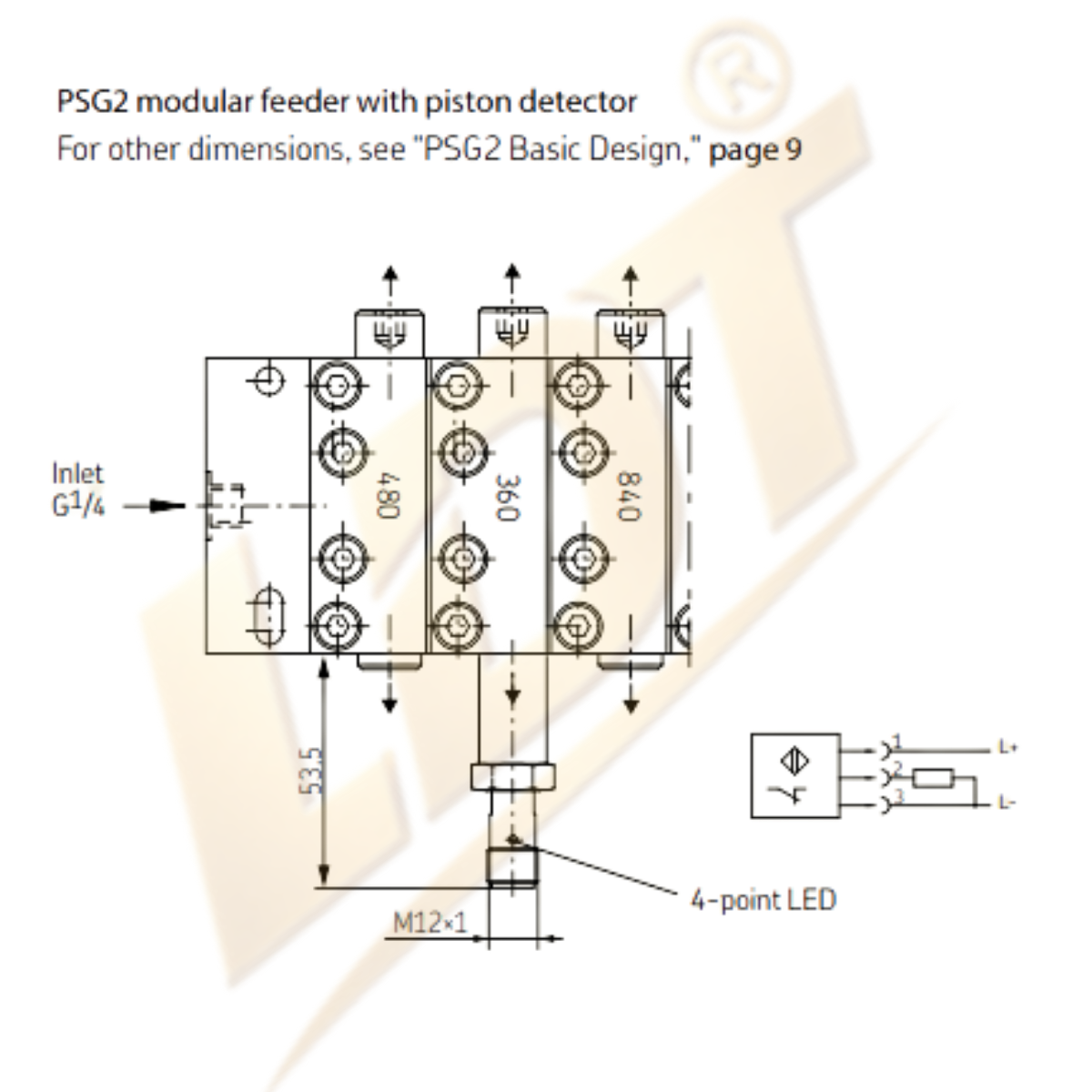

The VP/VPK series uses a multi-segment construction, allowing the number of segments and delivered quantity for each branch to be selected. PSG also has a modular configuration with several monitoring options. Monoblock designs such as VPB are more compact, but their degree of reconfiguration after product selection may differ from segmented designs.

When selecting a divider, determine the number of lubrication points, quantity delivered to each point, thread system, pressure, grease type and monitoring requirements. Counting the outlets alone is not sufficient.

Combine or close outlets only according to the instructions

On some progressive dividers, two opposite outlets can be combined to increase delivery to one point. Closing or combining the wrong outlets can alter the internal lubricant path or obstruct the piston cycle. Therefore, any configuration change must follow the diagram for the exact product series.

FAQ

Frequently asked questions

If one lubrication point is blocked, will the other points of a progressive distributor continue receiving grease normally?

Do not assume so. Because the pistons operate in sequence, a blocked point or a piston that cannot complete its stroke can interrupt the distributor cycle. This is also why progressive systems are commonly monitored with a cycle indicator or piston sensor at a suitable position.

Can two distributors with the same number of outlets be directly interchanged?

No. Also check delivery per outlet, section configuration, thread system, pressure, lubricant type, mounting dimensions and monitoring method. Two eight-outlet distributors with different delivery per cycle will change the grease quantity reaching each point.

Can an unused outlet on a progressive distributor simply be plugged?

Only when the documentation for the exact series permits it and the specified configuration is followed. On some designs, combining two outlets or closing one outlet also requires an internal passage change. Arbitrary plugging can alter delivery or stop the distributor cycle.

Does a moving cycle indicator guarantee that every point receives enough grease?

The indicator confirms progressive movement inside the distributor, but it does not replace inspection of all piping and lubrication points. Leakage, damaged piping or an incorrect downstream configuration can still cause an incorrect quantity at the point of use. Maintenance should check both the cycle and the delivery-line condition.
