1. Operating challenges in heavy-duty roller and conveyor systems
In cement, mining and metallurgical plants, heavy conveyors operate continuously under extreme pressure. Kinematic misalignment is a leading cause of vibration, premature wear and shorter overall system life.
Repeatedly removing and maintaining individual components creates substantial ongoing labor costs. This is why mechanical engineers increasingly select YHE spherical roller bearings together with standardized support systems.
Optimized solution: Instead of purchasing disconnected parts, combine the bearing core, housing and positioning accessories into a closed mechanical system that operates reliably and remains durable over time.
2. YHE spherical roller bearings and FK housings: a complete three-part solution
The compatibility of the three components below provides a comprehensive load-bearing solution proven in many heavy industrial systems.

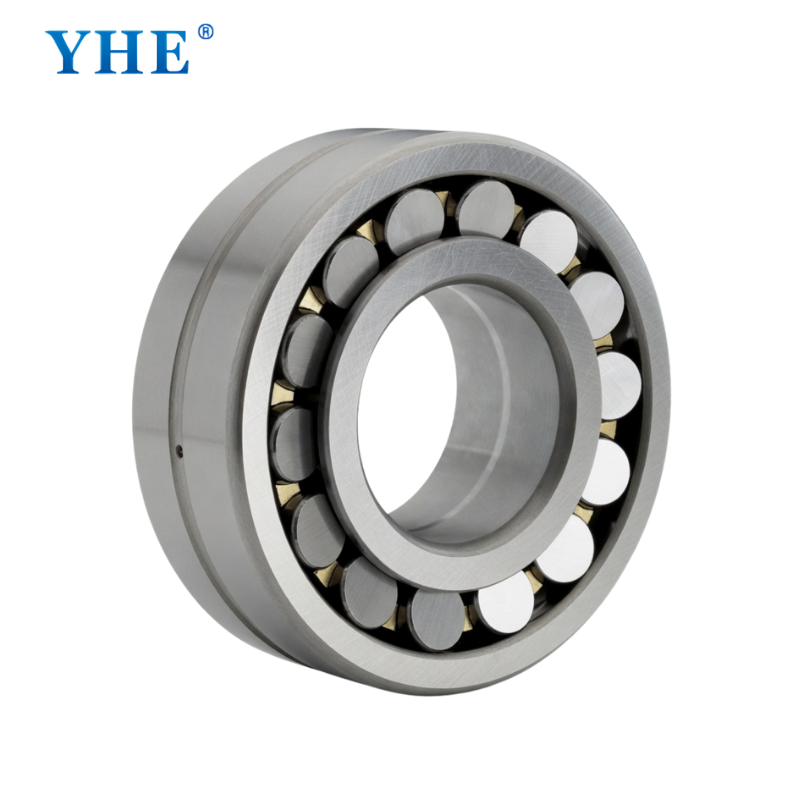

2.1. YHE spherical roller bearings – the core for extremely heavy loads
YHE spherical roller bearings have excellent self-aligning capability, automatically compensating for misalignment during operation. Their roller design supports very heavy radial and axial loads.
LDT regularly stocks YHE 22212 E/C3 for moderate misalignment and YHE 22324 CC/C3W33 for extremely heavy-duty shafts, helping plants maintain delivery schedules.
2.2. FK split housings (SNV) – rapid installation and maintenance
To protect the internal YHE spherical roller bearing, the FK SNV split housing is an essential choice. Its two-piece design lets engineers remove, inspect and relubricate the bearing on site without dismantling the entire shaft system.
LDT supplies a complete range from FK SNV 509 through SNV 532, cast from high-quality load-resistant iron to prevent cracking under severe mechanical impact in demanding industrial environments.
[See the genuine FK SNV split-housing range at LDT]

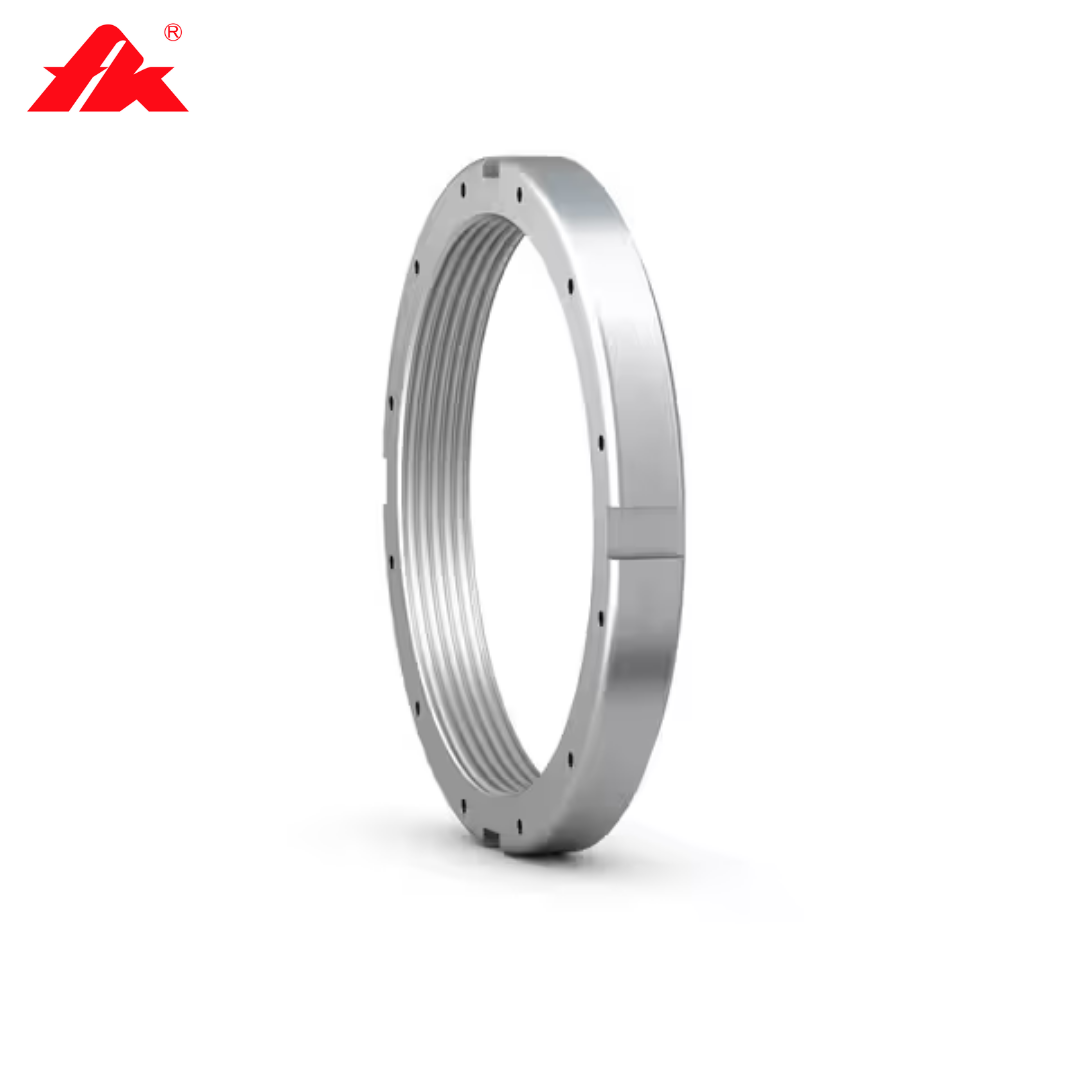

2.3. Adapter sleeves and lock nuts – completely secure mechanical positioning
The final components are the adapter sleeve and matching lock nut. These accessories securely mount a YHE spherical roller bearing on a plain shaft without complex stepped-shaft machining.
The bearing therefore does not move axially during high-speed operation, effectively preventing dangerous mounting creep.
3. Typical YHE and FK equipment combinations
To help customers select matched sizes, LDT summarizes common combinations used in heavy conveyor systems:
| YHE spherical roller bearing designation | Compatible FK split-housing range | Positioning accessory | Typical application |
|---|---|---|---|
| YHE 22212 E/C3 | FK SNV 512 | H 312 adapter sleeve | Cement conveyors and industrial fan shafts |
| YHE 22324 CC/C3W33 | FK SNV 524 | H 2324 adapter sleeve | Stone crushers and heavy-duty roller assemblies |
Consult manufacturer technical documentation and spherical roller bearing mounting standards
4. Economic benefits of purchasing a complete equipment solution from LDT
Purchasing a complete matched set instead of assembling unrelated components provides both technical and economic benefits. Full mechanical compatibility between the YHE spherical roller bearing and FK housing ensures correct installation from the outset.
The result is lower frictional heat, reduced energy consumption and significantly longer maintenance intervals. Consolidated purchasing from one supplier also optimizes procurement costs and simplifies the entire maintenance process.
5. LDT quality commitment and contact information
LDT is a leading reputable B2B industrial-equipment supplier specializing in high-quality drive solutions. We supply genuine, traceable YHE spherical roller bearings and FK housings.
- Complete documentation: Every product shipped includes transparent certificates of origin (CO) and quality (CQ).
- Technical support: Experienced engineers provide solution advice, load calculations and on-site installation technology transfer.
