Introducing the FK H 2320 Adapter Sleeve – Optimized Cost and Performance

1. General introduction

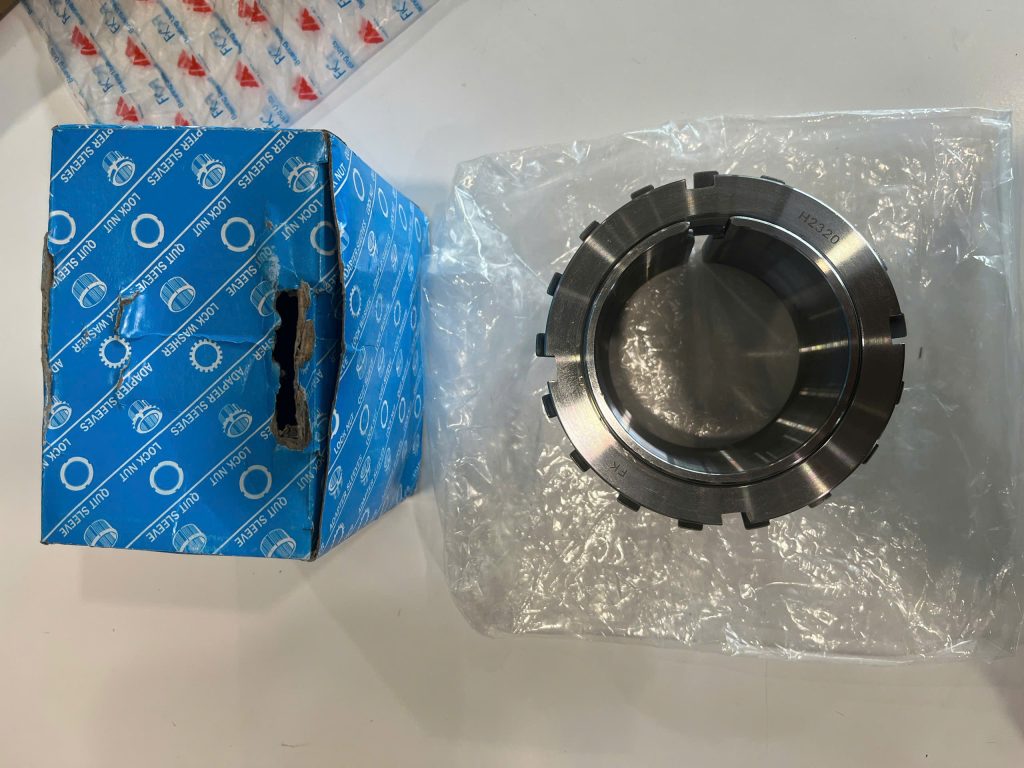

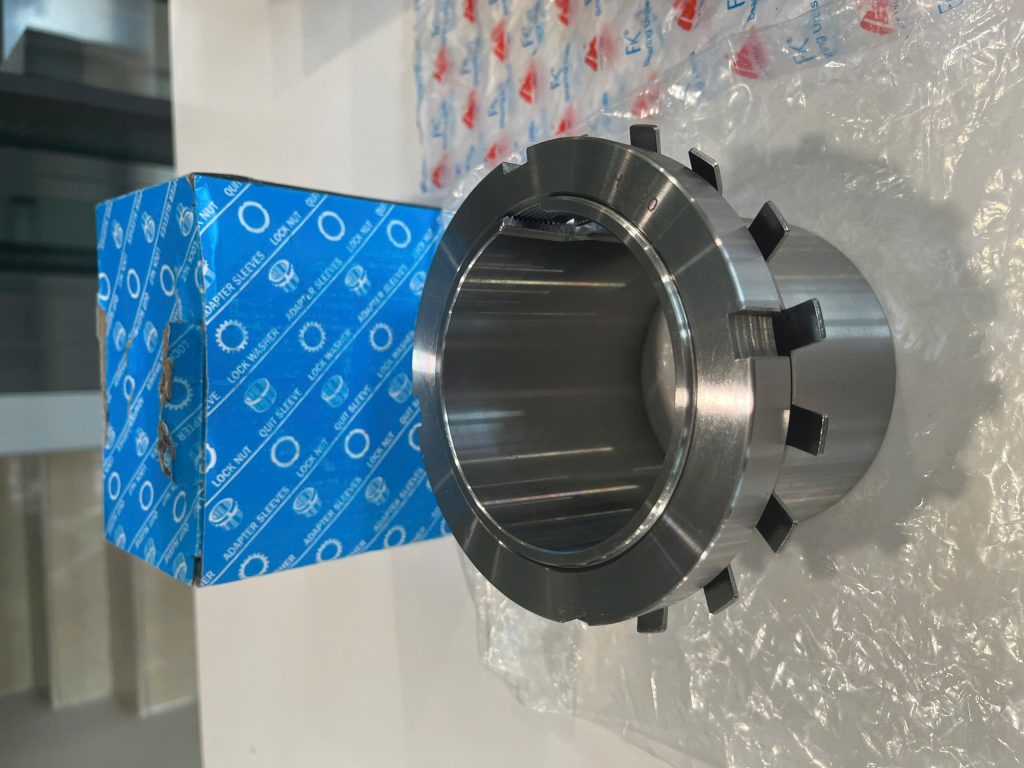

The FK H 2320 adapter sleeve is an accessory used to mount a tapered-bore bearing on a plain or stepped shaft. It is manufactured to the H2320 dimensional standard and can be used as a replacement for common brands on the market, such as SKF.

Using an adapter sleeve simplifies shaft construction while increasing flexibility during system installation and maintenance.

2. Technical specifications

The above specifications follow the common standard for the H 2320 series and allow direct interchangeability between brands.

3. Construction and operating principle

The FK H 2320 adapter sleeve consists of:

• Sleeve body with a longitudinal slot
• Standard tapered outside surface
• External thread for the lock nut

During installation, tightening the nut creates a clamping force between the sleeve and bearing, securing the bearing to the shaft through friction. This mechanism ensures concentricity and limits vibration during operation.

4. Features and advantages

• Allows a tapered-bore bearing to be mounted on a plain shaft without machining a taper
• Easy to install and remove
• Compatible with many self-aligning bearing types
• Convenient for maintenance and replacement
• Cost-effective compared with shaft-machining solutions

5. Applications

The FK H 2320 adapter sleeve is used in many industrial fields, including:

• Conveyor systems
• Cement and mining industries
• Textile and paper machinery
• Processing and manufacturing equipment

The product is suitable for systems that require flexible installation and convenient maintenance.

6. Comparison of FK H 2320 and SKF H 2320

Both products are manufactured to the H 2320 standard and can therefore be directly interchanged during installation.

Similarities:

• Dimensions and tolerances follow the common standard
• Both use KM 20 nuts and MB 20 lock washers
• Compatible with tapered-bore bearings

Differences:

• SKF products offer higher finish quality and stability
• FK H 2320 has a cost advantage and suits medium-load applications
• SKF is usually selected for systems requiring high reliability and long service life

7. Conclusion

The FK H 2320 adapter sleeve is an effective solution for mounting a tapered-bore bearing on a plain shaft and meets fundamental industrial technical requirements. With its cost advantage and flexible interchangeability, it suits many practical applications.
