Smart Automatic Lubrication Solutions for Beverage Filling Machines
Upgrading to an automatic lubrication system delivers substantial economic and operational benefits for food and beverage manufacturers, especially on modern filling-machine lines.

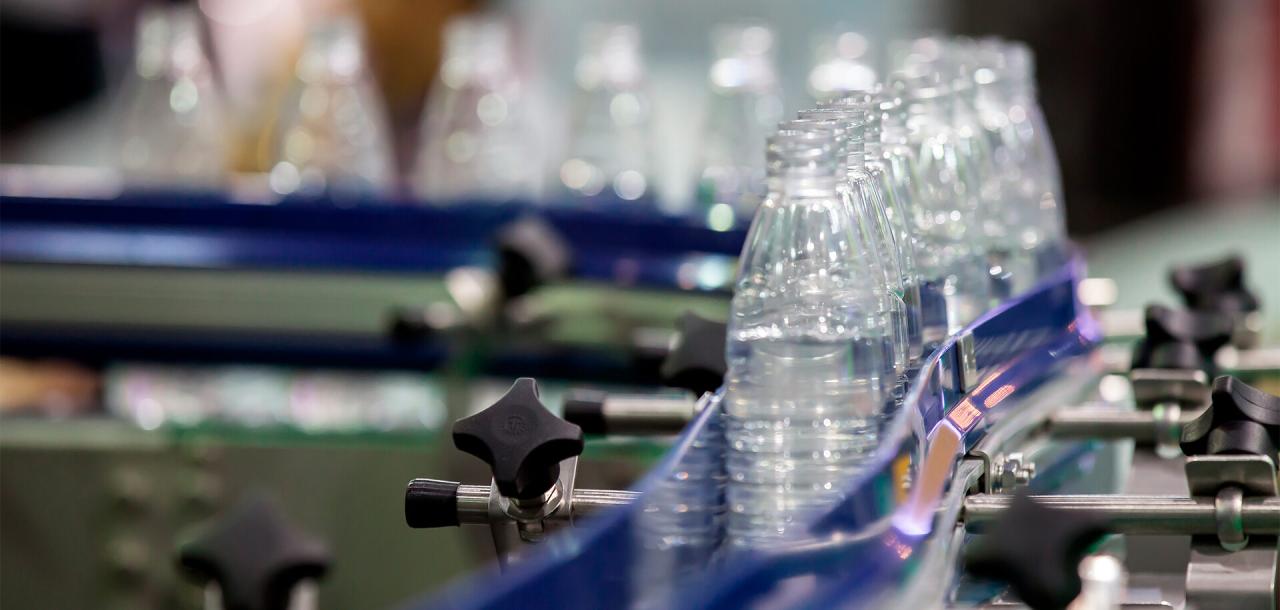

1. Lubrication challenges in beverage filling machines
With growing demand for beverages and continuous 24/7 production, beverage plants face pressure to maintain high overall equipment effectiveness (OEE). Filling machines are critical equipment whose accuracy, hygiene and reliability must be maintained, particularly with regard to the following issues:
- Under-lubrication: Reduces bearing and equipment life and creates a risk of missed lubrication points, especially in hard-to-reach locations.
- Over-lubrication: Creates a risk of product contamination and makes wastewater treatment after equipment cleaning more difficult.
- Complexity: A single machine can have as many as 80 lubrication points, many located in rotating assemblies, difficult to access or hazardous to service manually.
- Corrosion: A wet environment and frequent high-pressure washdown can damage conventional lubrication systems and shorten equipment life.
2. Benefits of SKF automatic lubrication systems (ALS)

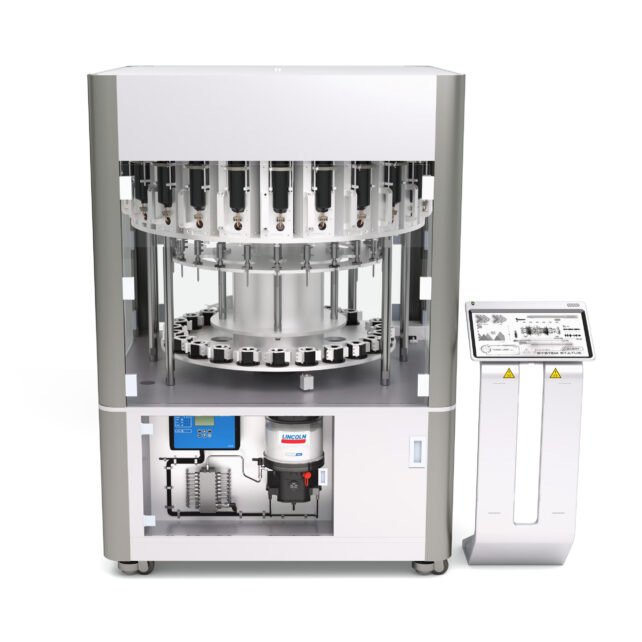

A centralized automatic lubrication system (ALS) improves operating efficiency and reduces reliance on highly skilled personnel:
- Delivers the correct amount of grease or oil to the correct location at the correct time, eliminating human error.
- Reduces lubricant consumption and simplifies maintenance management.
- Significantly reduces downtime and saves maintenance costs.
- Protects equipment against corrosion and extends the life of bearings, gears and drive chains.
- Allows higher production-line speeds while maintaining food safety and hygiene.
3. Types of automatic lubrication system
- Single-line automatic lubrication system:One pump supplies grease or oil to metering distributors. The system is used for large machines or multiple machines and can serve up to 900 lubrication points over distances of up to 100 m. Pressure-monitoring sensors support fully automatic control.

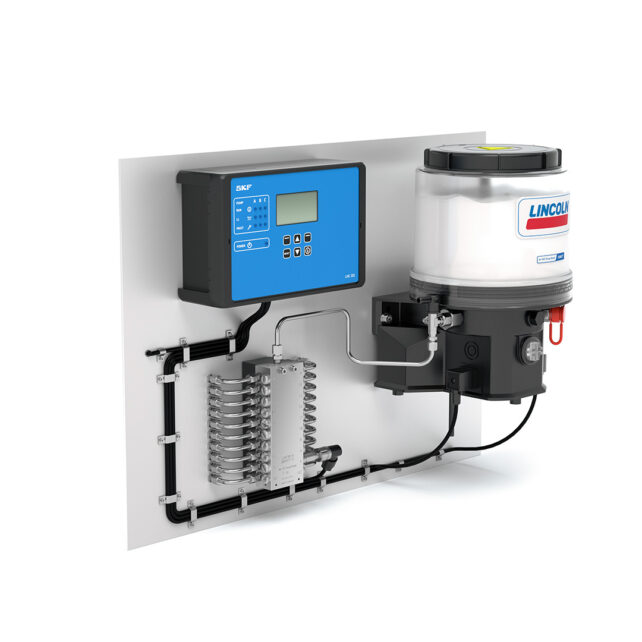

- Progressive automatic lubrication system:The most common solution for small and medium-sized machines, serving up to 150 lubrication points within a 15 m radius. A pump sends lubricant to the main divider, which distributes predetermined quantities through lines to each point.
4. Return on investment and economic benefits
- Reduces labor costs and downtime.
- Saves replacement materials such as bearings, chains and gears, reducing repair-material consumption by an average of 50%.
- Increases production-line speed and reduces the risk of product contamination.
- Provides a rapid return on investment through lower downtime, higher productivity and improved occupational safety.
5. Compliance with food-industry safety standards
SKF automatic lubrication systems meet demanding hygiene, food-safety and religious-standard requirements, including Halal and Kosher. The equipment is primarily made of stainless steel, suits wet environments and withstands high-pressure washdown.
6. Frequently asked questions about SKF automatic lubrication in the beverage industry
- Is an ALS suitable for every type of filling machine?
Yes. The system can be configured flexibly for each machine type and production-line scale. - Is the investment cost high?
The initial investment is recovered quickly through reduced downtime and lower material and labor costs. - Does automatic lubrication increase the risk of product contamination?
No. The system reduces contamination risk by tightly controlling grease or oil quantities and meeting food-hygiene standards. - Can the system be monitored remotely and provide automatic fault warnings?
Yes. Digital sensors and measuring devices support continuous monitoring and provide early warnings of insufficient lubrication or equipment faults.
7. Where can genuine SKF automatic lubrication systems be purchased?
LDT is proud to be a major SKF partner. In addition to supplying genuine products, LDT’s sales engineers provide advice and propose optimized technical solutions.
