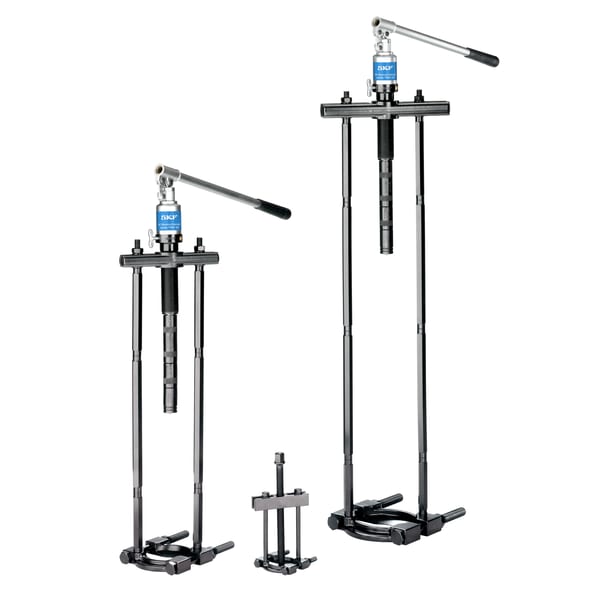

Puller kit TMBS 150E is the designation for the SKF TMBS 150E Strong Back Puller Kit, a puller used to remove bearings or ring-shaped components, especially in locations that are difficult to access with conventional jaw pullers.
TMBS 150E Puller Kit Components

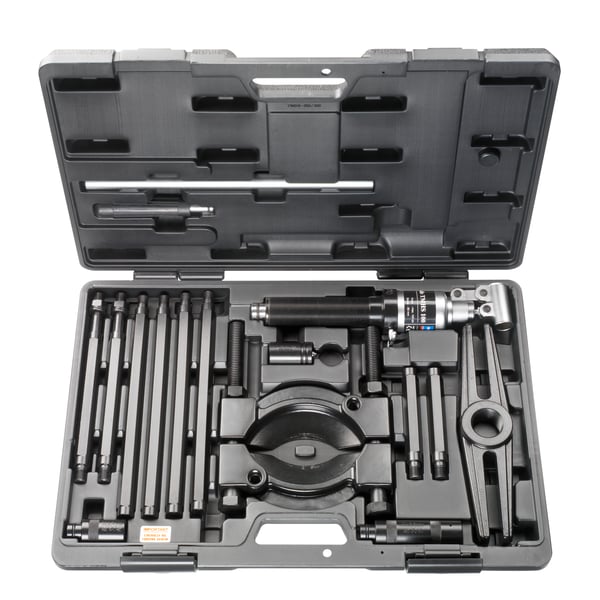

The kit includes:
- A separator that fits between the bearing and the shaft shoulder.
- A strong back beam for high load capacity.
- A hydraulic spindle (TMHS 100) that provides high, stable pulling force.
- Extension rods, a pulling screw, a spring-loaded center point and a robust carrying case.
Technical Specifications and Main Features of the TMBS 150E Puller Kit
| Specification | Value / description |
| Maximum pulling force | 100 kN (~11.2 tonnes-force) |
| Maximum reach | ~ 816 mm (32.1 in) |
| Shaft diameter range (using separator) | 35 – 150 mm |
| Hydraulic spindle stroke | 80 mm |
| Components and included accessories | Separator, main rods, extension rods, beam, TMHS 100 hydraulic spindle, hydraulic-spindle extensions, nosepiece and carrying case |
| Weight | ~ 17 kg |
Key Advantages of the TMBS 150E Puller Kit
- Removes bearings located deep inside an assembly or seized on a shaft.
- Avoids damage to the shaft or bearing through its spring-loaded center point and evenly distributed separating force.
- Length can be adjusted using the extension rods.
- The hydraulic spindle incorporates a safety valve for overload protection.
- Compact and easy to store and transport in its dedicated case.
Main Functions of the SKF TMBS 150E Puller Kit
- Removing bearings in confined spaces
The thin separator design fits between the bearing and the shaft shoulder, enabling removal of deeply seated or tightly fitted bearings.
- Generating high, even pulling force
The TMHS 100 hydraulic spindle generates pulling force of up to 100 kN (≈ 10 tonnes), enabling removal of large bearings or gears that are firmly seized on a shaft.
- Removing components without damaging the shaft or part
The spring-loaded center point distributes the pulling force evenly, preventing wear or scratches on the shaft end.
- Flexible adjustment for different sizes
The puller kit includes multiple extension rods, allowing its length and reach to be adjusted for bearings with diameters from 35 – 150 mm.
- Improving operational safety
A safety valve integrated into the hydraulic spindle prevents overload and protects the operator.
Practical Applications of the TMBS 150E
- Maintenance of electric motors, air compressors, gearboxes, industrial fans and pumps.
- Steel, cement, energy, mining, mechanical engineering, automotive and rotating-equipment maintenance industries.
- For maintenance technicians who need to remove bearings quickly and accurately without causing damage.
