Block bearings (also called plummer block bearings, or housed-unit bearings) is a combination of bearings, housings, bushings and the lubrication system. The modular design makes installation, disassembly and replacement easy in heavily loaded, harsh environments such as steel rolling mills.

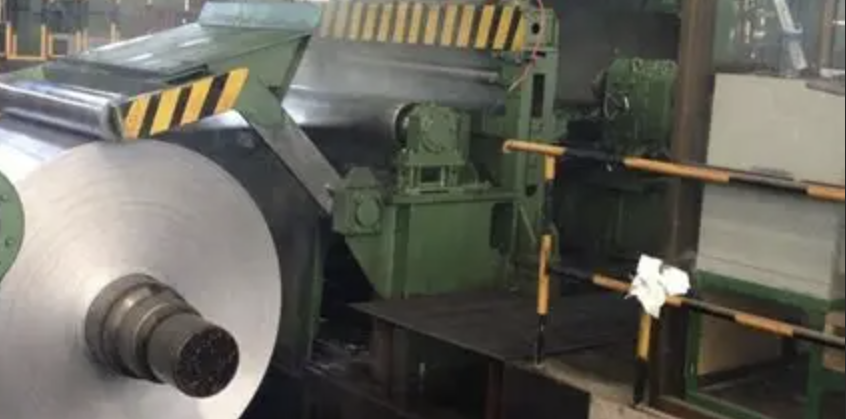

In steel rolling mills, block bearings are commonly installed at roll-shaft bearing positions, drive-shaft bearing supports, as well as roller conveyors, where bearings that carry heavy loads, withstand severe impacts and are easy to maintain.
1. Features of block bearings for steel rolling mills
1.1 High load capacity and vibration resistance
Block bearings for steel rolling use the following bearing types:
- Spherical roller bearings or roller bearings internally
- Capacity for radial and axial loads large
- The design absorbs vibration and shaft misalignment
1.2 Robust and easy-to-install housings
Housings are usually made of ductile iron or cast steel with high rigidity, securing the shaft under severe vibration and continuous loading. Some types also have split construction, making maintenance possible without removing the complete shaft assembly.
1.3 Integrated lubrication system
Block housings include:
- Grease ports or oil tubes connected to the central lubrication system
Double seals, preventing cooling water, metal dust and contaminants from entering the bearings - Optional temperature and vibration sensors, for the condition monitoring system (CMS)
2. Common block-bearing ranges used in steel rolling mills
| Block bearing type | Specific application | Key features |
| SNL housing (SKF) | Main roll-shaft support | Quick disassembly, split housing and integrated sensors |
| SD housing (FAG/NSK) | Roll shafts and high-load shafts | Thick cast-iron housing for spherical roller bearings |
| SAF/SN housing (SKF) | Auxiliary roll shafts | Labyrinth seals and ready oil ports |
| UC/UCP housing | Roller conveyors and auxiliary mechanisms | Simple design and easy replacement |
4. Specific applications in steel rolling mills
✅ Hot/cold roll-shaft supports:
Use block bearings with spherical roller bearings, split housings, heat-resistant seals and central lubrication.
✅ Raw-material conveyors:
Use UCP or UCFL, which are easy to install, quick to maintain and stable in operation.
✅ Drive systems:
Block roller bearings provide vibration resistance, stable force transmission and high accuracy.
4. Benefits of high-quality block bearings
✅ Shorter maintenance and replacement time
✅ Fewer failures caused by inadequate lubrication or vibration
✅ Longer steel-mill equipment life
✅ Optimized drive performance and lower energy consumption
✅ Suitable for smart monitoring systems (IoT, CMS)
5. Trusted block-bearing brands
Many leading global brands now supply block bearings for the steel industry, including:
- SKF: Ranges SNL, SE, SAF, SYNT – optimized design, sensor integration and modern seals
- FAG/INA (Schaeffler): Plummer block SD, with X-life bearings and automatic lubrication
- NSK, NTN, FYH, Timken: Common housing ranges for light- to heavy-duty applications
6. Conclusion
Block bearings are ideal for heavily loaded positions requiring high reliability in steel rolling mills. Their integrated design and easy maintenance reduce downtime, extend equipment life and improve production efficiency.
